CNC MORTISING MACHINES

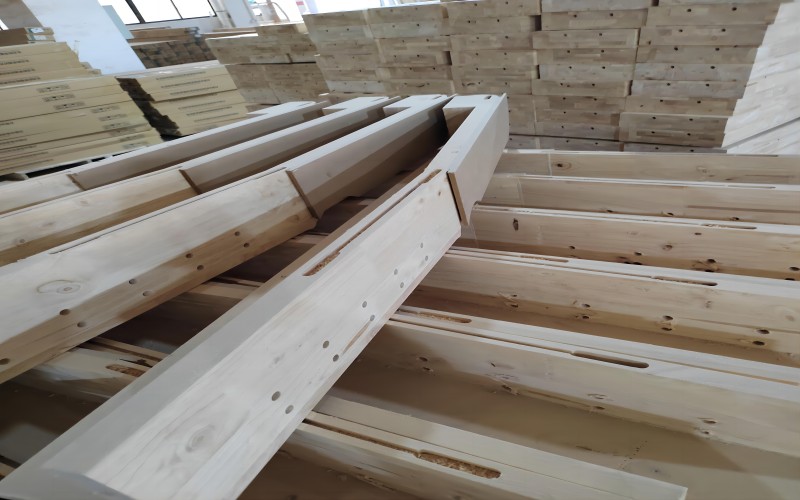

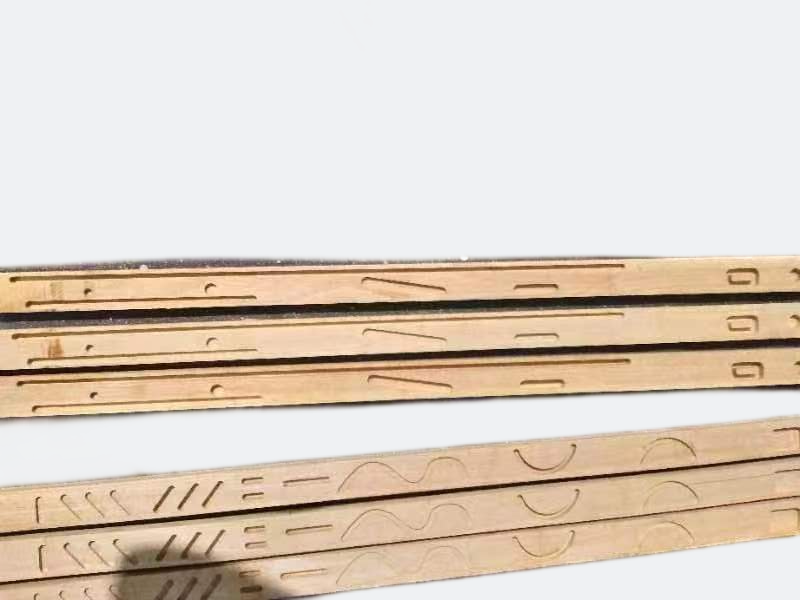

1.The milling straight groove, profiled groove,hole groove combinations.2.knife point on the knife, machine easily.3.unique wizard-style input processing data,no requirements for workers.4.Three-blade double station, circulation and processing speed.
Description Warranty Info


型号   ModelHF-SC1500-3/4HF-SC2000-3/4
加工长度  Processing length0-1550mm0-2200mm
加工宽度  Processing width0-120mm0-135mm
加工高度   Processing height0-170mm0-200mm
铣头轴距  Milling head wheelbase275mm275mm
X轴伺服功率 X-axis servo power1.5KW*1pcs1.5KW*1pcs
Y轴伺服功率 Y-axis servo power1.5KW*1pcs1.5KW*1pcs
Z轴伺服功率 Z-axis servo power1.5KW*1pcs1.5KW*1pcs
主轴转速  Spindle speed8000-18000 r/min8000-18000t/mln
主轴功率  Main shaft power4.5 KW*3/4pcs4.5 KW*3/4pcs
工作气压  Working pressure0.7 Mpa0.7 Mpa
机械重量  Mechanical weight2100 KG1750 KG
机械尺寸  Mechanical dimension2700*2450*1910mm3200*2450*1910mm
