CNC DOVETAIL MACHINE
CNC DOVETAIL MACHINE CNC DOVETAIL MACHINE CNC DOVETAIL MACHINE CNC DOVETAIL MACHINE CNC DOVETAIL MACHINE

CNC DOVETAIL MACHINE

Explore the benefits of CNC dovetail machines for woodworking. Achieve precise and consistent joinery with advanced CNC technology, perfect for creating dovetail joints with accuracy. Ideal for professional woodworkers seeking to enhance their craft with efficient and reliable machinery.
Contact Us
Description Warranty Info


CNC DOVETAIL MACHINEHF-650HF-900
转速     Spindle Speed18000rpm18000rpm
主轴马达   Spindle Motor3.5KW3.5KW
X轴伺服电机  X-axis Servomotor0.75KW0.75KW
Y轴伺服电机  Y-axis Servomotor0.75KW0.75KW
安装功率   Install Power5.0KW5.0KW
加工宽度   Processing Width10-650mm10-900mm
加工厚度   Processing Thickness5-25mm5-25mm
榫间距    Tenoning Spacing任意可调/adjustable任意可调/adjustable
切削周期   Cutting Period3-30S3-30S

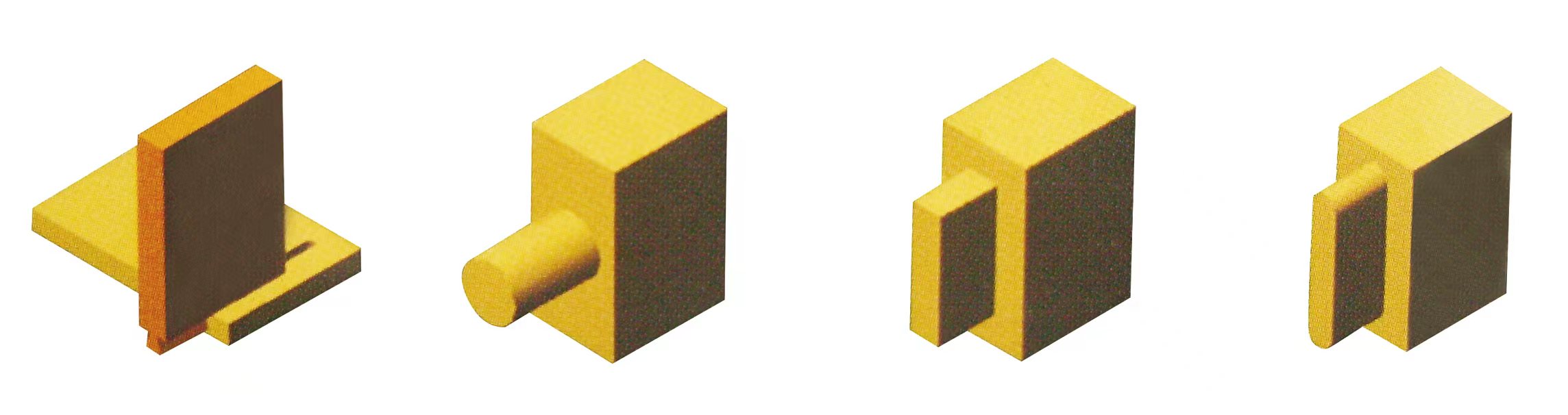

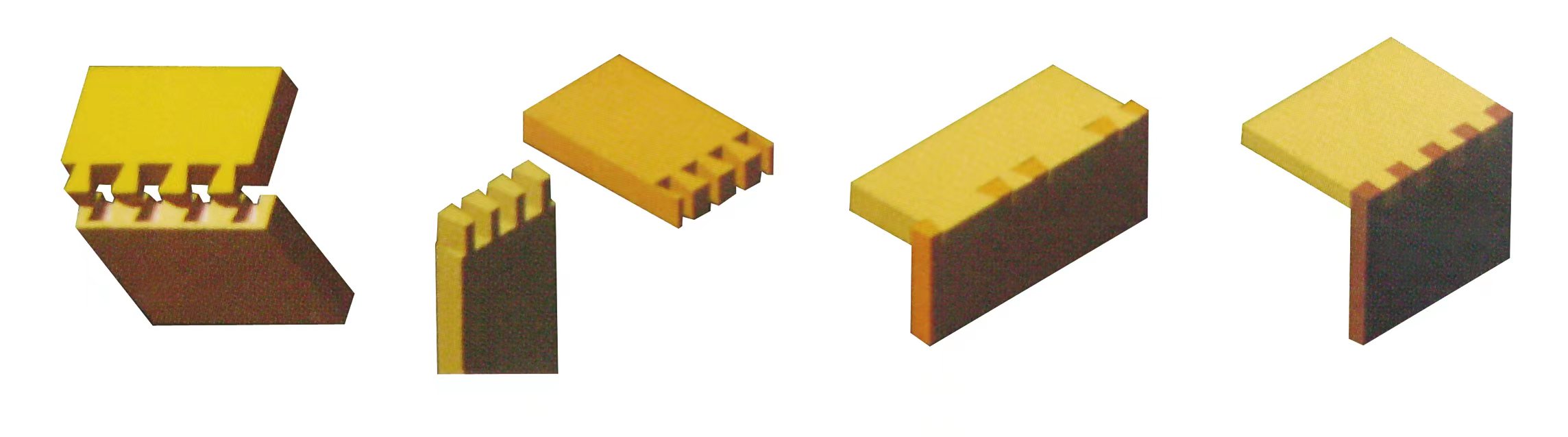

加工榫样   Processing TenonA、B、C、D、E、F、G、HA、B、C、D、E、F、G、H
工作气压   Working pressure0.7 Mpa0.7 Mpa
外部尺寸   Packing Size(LxWxH)1890*860*1190mm2140*860*1190mm
净重    Net Weight600KG830KG
